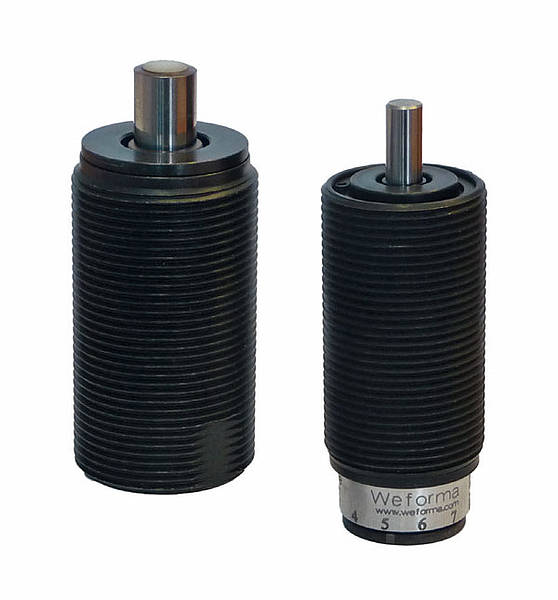

Compact Shock Absorbers

Compact industrial hydraulic shock absorber range ideally suited for applications that require high energy absorption in restricted spaces. Small body sizes from M20 to M32 with short stroke lengths from 7mm to 12mm together with self compensating linear deceleration characteristics and up to 135Nm/h energy absorption offer the design engineer a compact shock absorber solution for that difficult small area.

Features:

Adjustable model option now available WEK-M series
Compact shock absorber body design construction ideal for restricted space applications
Small M20 to M32 body sizes
Short stroke lengths 7mm to 12mm
High energy absorption compact shock absorber up to max 135,000 Nm/h
Self-compensating linear deceleration characteristics
Temperature operating range -20°C to +80°C with options available to operate -50°C to +120°C
Long life cycle compact shock absorber
Piston rod hardened stainless steel
Pro-Surf body protection offers corrosion resistance as standard
Integrated end stop as standard allows full stroke operation
Stainless steel compact shock absorber versions for pressure chambers up to 7 bar available and USDA-H1 compliant versions for food industry shock absorber use
RoHS compliant Directive 2002/95/EC
