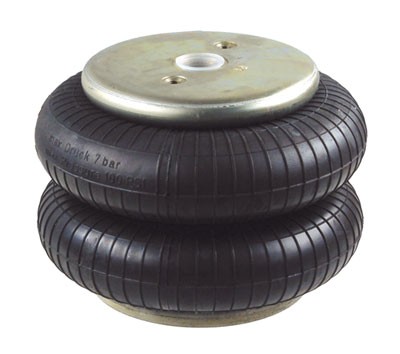

Double Convolution Air Spring Bellows
  • Operating pressure 0 - 8 bar
  • Choice of steel, stainless steel or aluminium connection mounting plates
  • Operating temperature range -40ºC to +50ºC up to 70°C intermittent use
  • High temperature ECO rubber version up to +130°C
  • Medium compressed air oiled/oilfree
  • Lateral misalignment up to 20 mm maximum
  • Tilt capability up to 25º maximum
  • Return force 120 - 300 N
