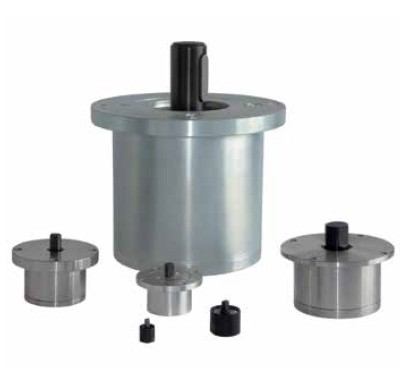

High torque rotary damper range offering up to 700Nm torque. Choose from uni direction clockwise, anticlockwise, or in both directions range of high torque rotary dampers options. Fixed and adjustable rotary damper settings. We can also offer a range of high torque stainless steel rotary dampers.
Click here for the sizing calculation program. Please note calculation link will open a new window in your browser.
WRD-H 0607 / 0805 / 1208 / 1610 / 2010 Series
- 180° rotary damper operating angle
- Fixed setting
- Clockwise, anti-clockwise, or both directions options available
- Aluminium steel body construction
- 0.08 Nm torque WRD-H 0607
- 0.2 Nm torque WRD-H 0805
- 1.1 Nm torque WRD-H 1208
- 2.6 Nm torque WRD-H 1610
- 4.2 Nm torque WRD-H 2010
WRD-H 2515 / 3015 / 4025 / 6030 Series
- 180° rotary damper operating angle
- Adjustable setting
- Clockwise, anti-clockwise, or both directions options available
- Aluminium steel body construction
- Stainless steel rotary damper body option
- 10 Nm torque WRD-H 2515
- 14 Nm torque WRD-H 3015
- 40 Nm torque WRD-H 4025
- 110 Nm torque WRD-H 6030
WRD-H 7550 / 9565 / 12070 Series
- 180° rotary damper operating angle
- Adjustable setting
- Clockwise, anti-clockwise, or both directions options available
- Steel construction
- Stainless steel rotary damper body option
- 250 Nm torque WRD-H 7550
- 500 Nm torque WRD-H 9565
- 700 Nm torque WRD-H 12070
