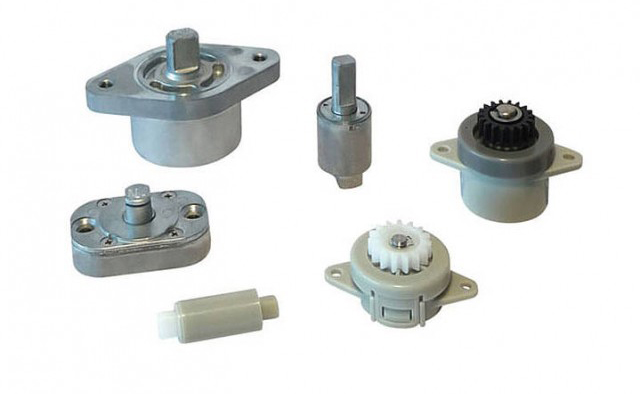

D-Celtech UK can supply a range of low cost rotary dampers offering smooth controlled damping in both clockwise and anticlockwise movements as well as 360 degrees continuous deceleration damping control.

Click here for the sizing calculation program. Please note calculation link will open a new window in your browser.

• Clockwise

  Anti-Clockwise

  Torque Nm

  Opening Angle º
  WRD 16 - R25
  WRD 16 - R40

  WRD 16 - L25
  WRD 16 - L40

  2,45
  3,92

  110
  110
  WRD 18 - R10
  WRD 18 - R15
  WRD 18 - R20

  WRD 18 - L10
  WRD 18 - L15
  WRD 18 - L20

  0,98
  1,47
  1,96

  110
  110
  110
  WRD 19 - R15
  WRD 19 - R20
  WRD 19 - R25
  WRD 19 - R30

  WRD 19 - L10
  WRD 19 - L20
  WRD 19 - L25
  WRD 19 - L30

  1,47
  1,96
  2,45
  2,94

  110
  110
  110
  110
  WRD 20 - R20
  WRD 20 - R25
  WRD 20 - R30
  WRD 20 - R35

  WRD 20 - L20
  WRD 20 - L25
  WRD 20 - L30
  WRD 20 - L35

  1,96
  2,45
  2,94
  3,43

  110
  110
  110
  110
  WRD 22 - R13
  WRD 22 - R20

  WRD 22 - L13
  WRD 22 - L20

  0,49 - 1,27
  0,98 - 1,96

  110
  110
  WRD 23 - R13
  WRD 23 - R20

  WRD 23 - L13
  WRD 23 - L20

  0,49 - 1,27
  0,98 - 1,96

  110
  110
  WRD 34 - R15
  WRD 34 - R30
  WRD 34 - R60

  WRD 34 - L15
  WRD 34 - L30
  WRD 34 - L60

  0,15
  0,29
  0,59

  180
  180
  180
  WRD 40 - R50
  WRD 40 - R70
  WRD 40 - R90

  WRD 40 - L50
  WRD 40 - L70
  WRD 40 - L90

  4,9
  6,86
  8,82

  120
  120
  120
  WRD 60 - R10
  WRD 60 - R15
  WRD 60 - R20

  WRD 60 - L10
  WRD 60 - L15
  WRD 60 - L20

  0,98
  1,47
  1,96

  110
  110
  110
  WRD 58 - R30
  WRD 58 - R50
  WRD 58 - R80

  WRD 58 - L30
  WRD 58 - L50
  WRD 58 - L80

  0,3
  0,5
  0,8


  continuously
  WRD 62 - R3
  WRD 62 - R6
  WRD 62 - R9
  WRD 62 - R15
  WRD 62 - R20
  WRD 62 - R25

  WRD 62 - L3
  WRD 62 - L6
  WRD 62 - L9
  WRD 62 - L15
  WRD 62 - L20
  WRD 62 - L25

  0,03
  0,06
  0,09
  0,15
  0,20
  0,25



  continuously
  WRD 73 - R10
  WRD 73 - R20
  WRD 73 - R30

  WRD 73 - L10
  WRD 73 - L20
  WRD 73 - L30

  0,10
  0,20
  0,29

  110
  110
  110
  WRD 88 - R40

  WRD 88 - L40

  0,04

  continuously
  WRD 100 - R15
  WRD 100 - R20
  WRD 100 - R25
  WRD 100 - R30

  WRD 100 - L15
  WRD 100 - L20
  WRD 100 - L25
  WRD 100 - L30

  1,5
  2,0
  2,5
  3,0

  110
  110
  110
  110
  WRD 470 - R2
  WRD 470 - R3
  WRD 470 - R4


  WRD 470 - L2
  WRD 470 - L3
  WRD 470 - L4


  2,0 ±0,3
  3,0 ±0,3
  4,0 ±0,5


  continuously
  WRD 470 - C2
  WRD 470 - C3
  WRD 470 - C4


  2,0 ±0,3
  3,0 ±0,3
  4,0 ±0,5


  continuously
  WRD 570 - R3
  WRD 570 - R4
  WRD 570 - R5
  WRD 570 - R6
  WRD 570 - R7
  WRD 570 - R8


  WRD 570 - L3
  WRD 570 - L4
  WRD 570 - L5
  WRD 570 - L6
  WRD 570 - L7
  WRD 570 - L8


  3,0 ±0,3
  4,0 ±0,3
  5,0 ±0,3
  6,0 ±0,3
  7,0 ±0,3
  8,0 ±0,3


  continuously
  WRD 570 - C3
  WRD 570 - C4
  WRD 570 - C5
  WRD 570 - C6
  WRD 570 - C7
  WRD 570 - C8


  3,0 ±0,3
  4,0 ±0,3
  5,0 ±0,3
  6,0 ±0,3
  7,0 ±0,3
  8,0 ±0,3


  continuously
