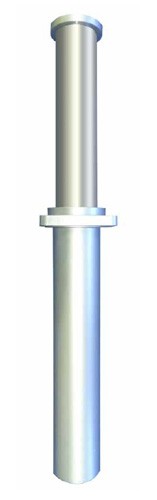

Elasto Fluid Shock Absorbers

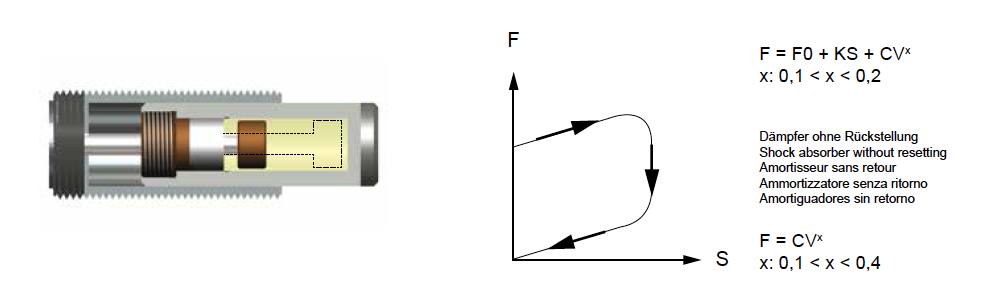

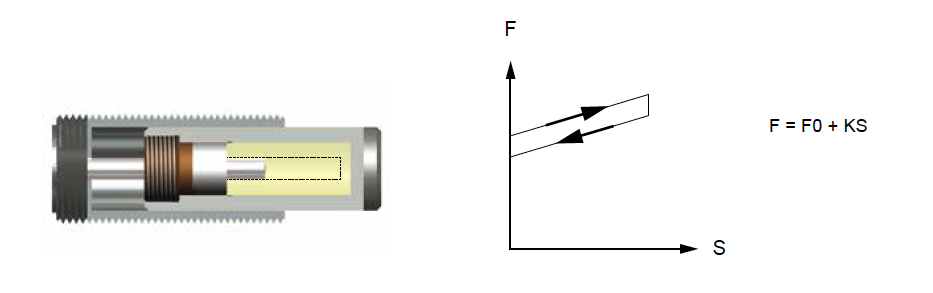

Elasto fluid shock absorber dampers use a high viscosity elastomer fluid instead of hydraulic oil as a dampening method. The hydrostatic compression of visco elastic fluids means that the part can be used as a shock absorber or alternatively as a spring with high reset force.

With the help of calculation software for shock absorbers you can easily find the best solution. Please note calculation link will open a new window in your browser.

Features:

High viscosity elastomer damping medium leakproof construction
Body sizes range from 25mm to 230mm diameter with strokes up to 1300mm
Engineering applications can be found throughout industries as railway shock absorber buffers use, steel mill shock absorber buffers, marine shock absorber use on sluice gates, Military use shock absorbers, heavy plant engineering buffers
High energy absorption up to 1,300,000Nm
Progressive type deceleration characteristics
Pressure tube zinc plated. Housing painted for harsh environments
Maintenance free high life cycle units
Operating temperature range -20ºC to +60ºC
Conforms to RoHS Directive 2002/95/EC
