D-Celtech can offer a wide range of push/pull, tension/traction, stainless steel, adjustable, custom built gas springs. We can even ensure the right model is chosen for your application with our free gas spring strut design configuration and calculation service. Call us today with your requirement.

Features:

High corrosion resistance features

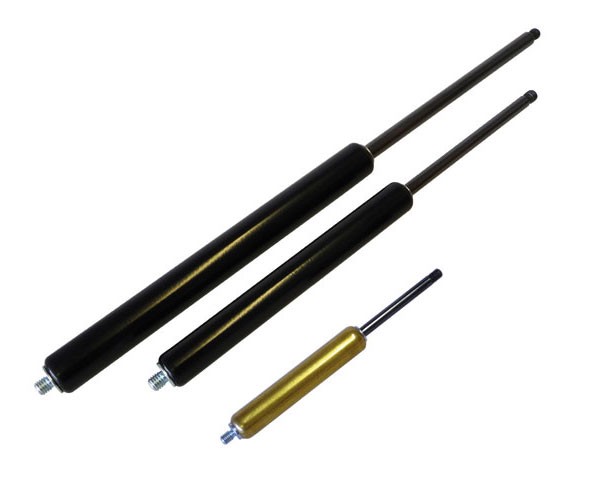

• Powder coated housing (WM-G 8 series brass body)
• Ceramic coated piston rod (WM-G 8 - 40 series)
• Hard chrome-plated piston rod (WM-G 70 series)
Low friction coefficient to achieve the lowest extension forces
Integrated grease chamber and sliding bearing
Low breakaway force
Free installation position
Maintenance-free
Working temperature range -20°C to +80°C with option -45°C to +200°C
Adjustable filling force available as option
RoHS - conform Directive 2002/95/EC

WM-G-8 Series

Piston rod: Ø 3mm / Housing: Ø 8mm
Strokes: 20, 30, 40, 50, 60, 80 mm
Force: 10 - 100 N

WM-G-10 Series

Piston rod: Ø 3mm / Housing: Ø 10mm
Strokes: 20, 30, 40, 50, 60, 80mm
Force: 10 - 100 N

WM-G-12 Series

Piston rod: Ø 4mm / Housing: Ø 12mm
Strokes: 20, 30, 40, 50, 60, 80,100, 120, 150mm
Force: 10 - 180 N

WM-G-15 Series

Piston rod: Ø 6mm / Housing: Ø 15mm
Strokes: 20, 40, 50, 60, 80,100, 120, 150, 200mm
Force: 20 - 400 N

WM-G-19 Series

Piston rod: Ø 8mm / Housing: Ø 19mm
Strokes: 50, 100, 150, 200, 250, 300mm
Force: 50 - 700 N

WM-G-22 Series

Piston rod: Ø 10mm / Housing: Ø 22mm
Strokes: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700mm
Force: 80 - 1300 N

WM-G-28 Series

Piston rod: Ø 14mm / Housing: Ø 28mm
Strokes: 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750mm
Force: 150 - 2500 N

WM-G-40 Series

Piston rod: Ø 20mm / Housing: Ø 40mm
Strokes: 100, 150, 200, 300, 400, 500, 600, 800, 1000mm
Force: 500 - 5000 N

WM-G-70 Series

Piston rod: Ø 30mm / Housing: Ø 70mm
Strokes: 100, 200, 300, 400 , 500, 600, 700, 800mm
Force: 2000 - 13000 N

WM-G-40 Series

Piston rod: Ø 20mm / Housing: Ø 40mm
Strokes: 100, 150, 200, 300, 400, 500, 600, 800, 1000mm
Force: 500 - 5000 N
