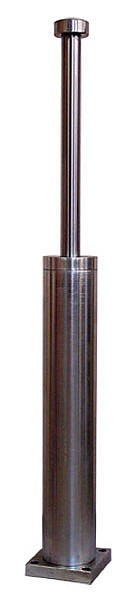

LDS Series Heavy Duty Shock Absorber Buffer

The LDS range of custom built heavy duty shock absorber buffers are ideal for high speed impact forces found especially within the automated stacker crane buffer industry applications.

Each shock absorber buffer is manufactured to offer the unique deceleration characteristics required for that individual application.

Other industrial applications include overhead gantry crane shock absorber buffer use,military shock absorber use, shock absorbers for test rigs, port harbour crane shock absorber useand ideal for emergency use shock absorbers in general engineering applications.

Features:

Heavy duty shock absorber buffers available on short delivery times
Each heavy duty shock absorber buffer is manufactured to customer application specification
Housing zinc plated with coated option for outdoor and marine shock absorber use
High life cycle
Hard chrome-plated piston rod
Up to 1800mm stroke lengths
Proximity switch sensor for piston movement detection
Protection bellows option available for harsh environment applications such as in mining shock absorber or steel mill shock absorber buffer use
Special heavy duty shock absorber buffer versions available including enlarged stop caps, metal wipers & mountings
Operating temperature range -20ºC to +80ºC with an option -40ºC to +100ºC

Stroke (mm)

max. Force (kN)

Energy / Stroke (Nm)

LDS 25

50 – 300

22 - 30

1250 - 7300

LDS 32

50 – 600

50

2000 – 24000

LDS 40

50 – 1200

45 –80

3000 – 51000

LDS 50

50 – 1200

67 – 120

40000 – 76000

LDS 75

50 – 1800

140 – 240

9600 – 134000

LDS 80

50 –1800

150 – 280

11800 – 210000

LDS 100

50 – 1200

212 – 360

15500 – 279000

LDS 125

50 – 1200

410 – 552

23000 – 460000

LDS 160

50 – 1200

800 – 900

37500 – 800000
