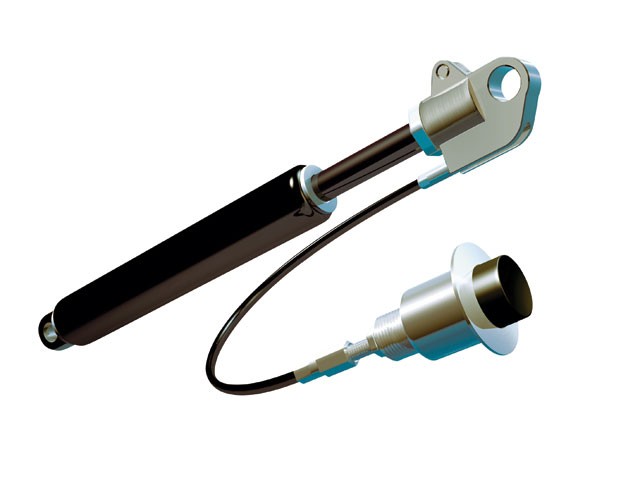

Lockable Gas Springs

D-Celtech offer a range of adjustable lockable gas springs for use in applications requiring a varying stroke adjustment such as those found in seat height adjustment, hospital medical bed height adjustment, dentist chair incline adjustment, hairdresser salon chair adjustment, lid opening, gate closures etc

Features:

Choice of 4 versions
3 types of release mechanisms - Bowden wire with push button, Lever or Hydraulic with push button
Freely lockable over the complete stroke
High corrosion resistance
Piston rod: ceramic coated
Minimal friction coefficient to achieve the lowest extension forces
Integrated grease chamber and sliding bearing
Low breakaway force
Installation position free
Maintenance-free and ready for use
Temperature range: -20°C to +80°C with optional: -45°C to +200°C
Adjustable filling force (optional)
RoHS - conform Directive 2002/95/EC

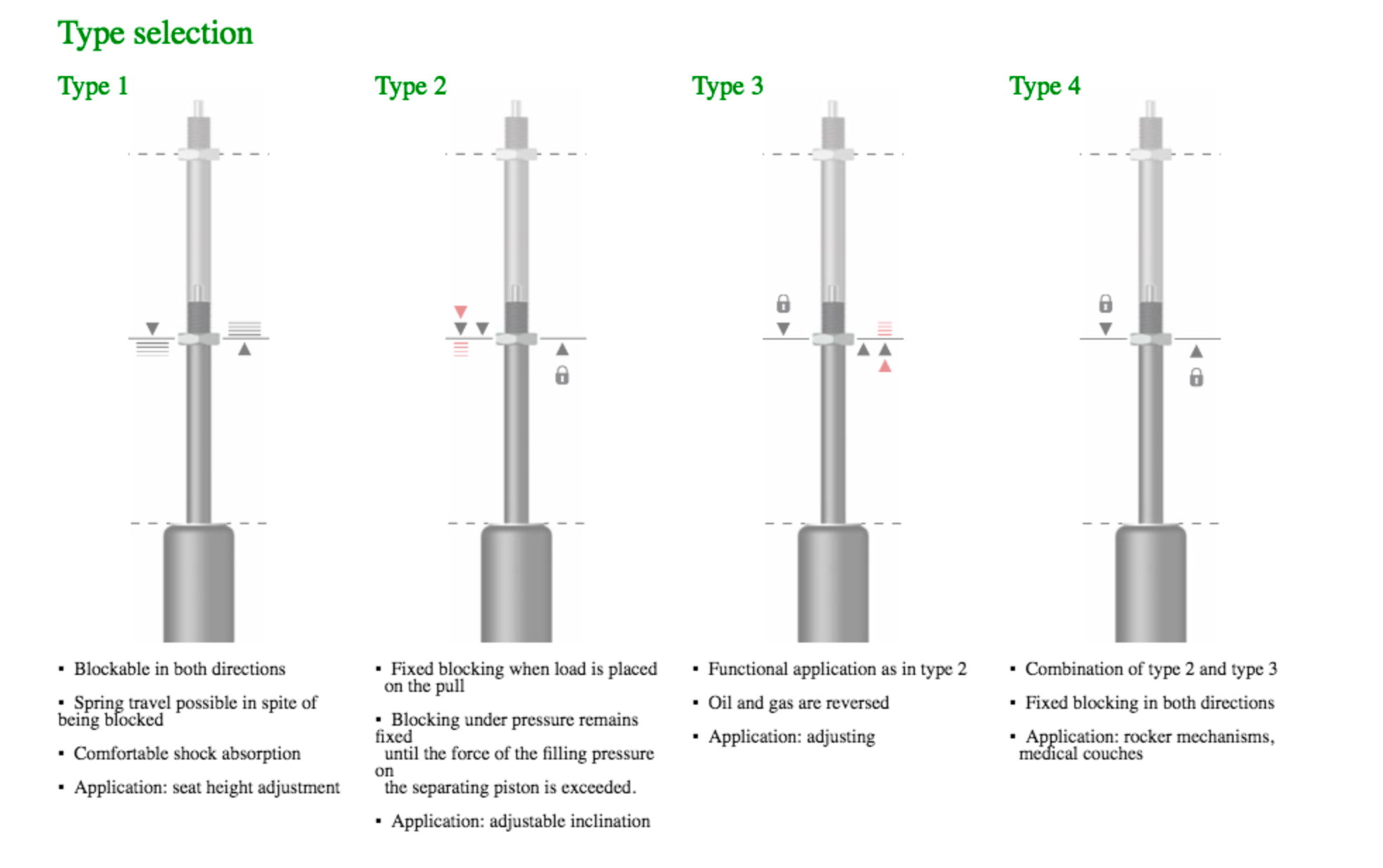

(Click on the image to enlarge)

Type 1: Lockable in both directions

WM-GB-22

Piston rod: Ø 8mm / Housing: Ø 22mm
Strokes: 50, 100, 150, 200, 250, 300
Force: 40 - 700 N

WM-GB-22K

Piston rod: Ø 10mm / Housing: Ø 22mm
Strokes: 50, 100, 150, 200, 250, 300
Force: 50 - 1300 N

WM-GB-28

Piston rod: Ø 8mm / Housing: Ø 28/mm
Strokes: 50, 100, 150, 200, 250, 300
Force: 40 - 700 N

WM-GB-28K

Piston rod: Ø 10mm / Housing: Ø 28mm
Strokes: 50, 100, 150, 200, 250, 300
Force: 50 - 1300 N

WM-GB-40

Piston rod: Ø 14mm / Housing: Ø 40mm
Strokes: 50, 100, 150, 200, 300, 400, 500, 600, 700
Force: 150 - 2600 N

WM-G-22 Series

Piston rod: Ø 10mm / Housing: Ø 22mm
Strokes: 50, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700mm
Force: 80 - 1300 N

Type 2: Fixed locking when load is placed on the compression (pull)

WM-GB-22

Piston rod: Ø 8mm / Housing: Ø 22mm
Strokes: 50, 100, 150, 200, 250, 300
Force: 40 - 700 N

WM-GB-22K

Piston rod: Ø 10mm / Housing: Ø 22mm
Strokes: 50, 100, 150, 200, 250, 300
Force: 50 - 1300 N

WM-GB-28

Piston rod: Ø 8mm / Housing: Ø 28/mm
Strokes: 50, 100, 150, 200, 250, 300
Force: 40 - 700 N

WM-GB-28K

Piston rod: Ø 10mm / Housing: Ø 28mm
Strokes: 50, 100, 150, 200, 250, 300
Force: 50 - 1300 N

WM-GB-40

Piston rod: Ø 14mm / Housing: Ø 40mm
Strokes: 100, 150, 200, 300, 400, 500, 600, 700
Force: 150 - 2600 N

WM-GB-28K

Piston rod: Ø 13mm / Housing: Ø 28mm
Strokes: 50, 100, 150, 200, 250, 300
Force: 50 - 1300 N

Type 3: Fixed locking when load is placed on the extension (push)

WM-GB-22

Piston rod: Ø 8mm / Housing: Ø 22mm
Strokes: 50, 100, 150, 200
Force: 40 - 700 N

WM-GB-22K

Piston rod: Ø 10mm / Housing: Ø 22mm
Strokes: 50, 100, 150, 200, 250, 300
Force: 50 - 1300 N

WM-GB-28

Piston rod: Ø 8mm / Housing: Ø 28/mm
Strokes: 50, 100, 150, 200, 250, 300
Force: 40 - 700 N

WM-GB-28K

Piston rod: Ø 10mm / Housing: Ø 28mm
Strokes: 50, 100, 150, 200, 250, 300
Force: 50 - 1300 N

WM-GB-40

Piston rod: Ø 14mm / Housing: Ø 40mm
Strokes: 50, 100, 150, 200, 300, 400, 500, 600, 700
Force: 150 - 2600 N

WM-GB-28K

Piston rod: Ø 13mm / Housing: Ø 28mm
Strokes: 50, 100, 150, 200, 250, 300
Force: 50 - 1300 N

Type 4: Fixed locking in both directions

WM-GB-22K

Piston rod: Ø 10mm / Housing: Ø 22mm
Strokes: 50, 100, 150, 200, 250
Force: 50 - 1300 N

WM-GB-28K

Piston rod: Ø 10mm / Housing: Ø 28mm
Strokes: 50, 100, 150, 200, 250
Force: 50 - 1300 N

WM-GB-40

Piston rod: Ø 14mm / Housing: Ø 40mm
Strokes: 50, 100, 150, 200, 300
Force: 150 - 2600 N

WM-GB-28K

Piston rod: Ø 13mm / Housing: Ø 28mm
Strokes: 50, 100, 150, 200, 250, 300
Force: 50 - 1300 N
